IoT SDK Integration Guide

Feature Description

QuecIotSdk serves as the entry SDK for IoT SDK, enabling development based on public cloud or private deployments.

This SDK helps developers rapidly complete app development because developers only need to focus on UI/UE design, while ignoring complex protocols and error management.

Key features:

• Initialize the SDK (This step must be completed before user, device, home, and other functionalities are used).
• Enable debug mode to print logs for issue analysis.
• Set the country code to get global domain routing services data.
• Get country list data.

SDK Integration

Step 1: Create an Android Project

Create a new project in Android Studio. Refer to the official documents for guidance.

Step 2: Configure Dependencies

In the project's root directory, edit the build.gradle file.

buildscript {
    repositories {
        //Add the following configurations.
        maven {
            url 'http://106.15.139.220:8081/repository/maven-snapshots/'
            allowInsecureProtocol = true
        }
        maven {
            url 'http://106.15.139.220:8081/repository/maven-releases/'
            allowInsecureProtocol = true
        }
    }
}

In the project's app directory, edit the build.gradle file.

dependencies {
    //Add the core library dependency.
    implementation 'com.quectel.app.sdk:quec-iot-sdk:2.0.0'
}

Step 3: Configure userDomain and userDomainSecret

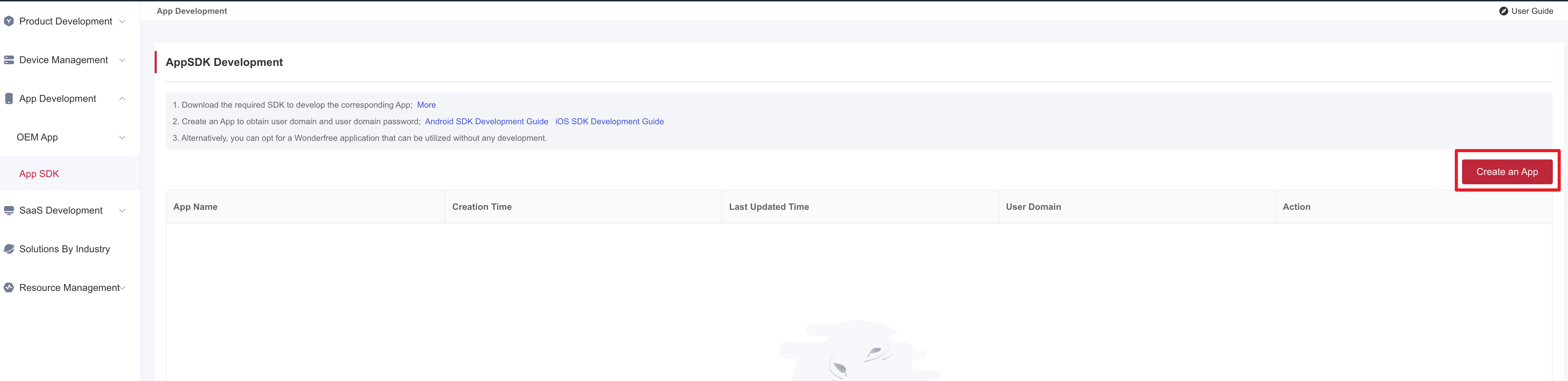

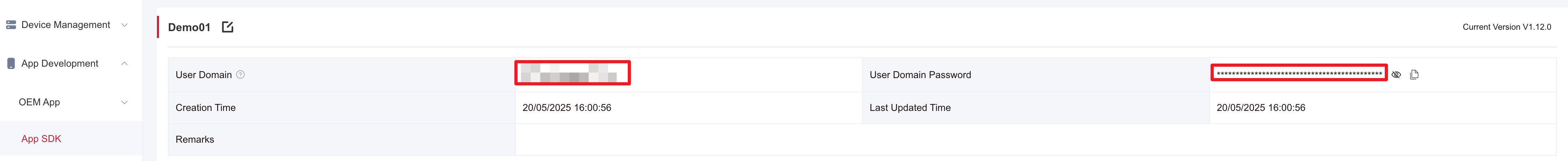

Obtain userDomain and userDomainSecret by creating an app in the Developer Center.

Step 4: Configure Obfuscation Rules

Configure obfuscation rules in the proguard-rules.pro file in the project's app directory.

-keep class  com.quectel.basic.common.entity.**{*;}
-keep class * implements com.quectel.basic.common.entity.QuecBaseModel{*;}
-keep class * implements com.quectel.basic.common.event.QuecBaseEvent{*;}

# RxJava
-dontwarn sun.misc.**
-keepclassmembers class rx.internal.util.unsafe.*ArrayQueue*Field* {
    long producerIndex;
    long consumerIndex;
}

# okhttp3
-keepattributes Signature
-keepattributes *Annotation*
-keep class com.squareup.okhttp.* { *; }
-keep interface com.squareup.okhttp.** { *; }
-dontwarn com.squareup.okhttp.**

# Okio
-dontwarn com.squareup.**
-dontwarn okio.**
-keep public class org.codehaus.* { *; }
-keep public class java.nio.* { *; }

# Gson specific classes
-dontwarn sun.misc.**
-keep class com.google.gson.examples.android.model.** { <fields>; }
-keep class * implements com.google.gson.TypeAdapterFactory
-keep class * implements com.google.gson.JsonSerializer
-keep class * implements com.google.gson.JsonDeserializer
-keepclassmembers,allowobfuscation class * {
    @com.google.gson.annotations.SerializedName <fields>;
}

# mmkv
-keep class com.tencent.mmkv.** {*;}

# eventbus
-keepattributes *Annotation*
-keepclassmembers class * {
    @org.greenrobot.eventbus.Subscribe <methods>;
}
-keep enum org.greenrobot.eventbus.ThreadMode { *; }
-keepclassmembers class org.greenrobot.eventbus.util.ThrowableFailureEvent {
    <init>(java.lang.Throwable);
}
-keep class org.greenrobot.eventbus.android.AndroidComponentsImpl

Step 5: Initialize the SDK

API

Initialize the SDK with the user domain, secret, and cloud service type to connect to the public cloud's China, Europe, or North America services.

fun startWithConfig(
    application: Application,
    userDomain: String,
    userDomainSecret: String,
    cloudServiceType: QuecCloudServiceType
)

Parameter

Parameter	Required	Description
application	Y	Application object.
userDomain	Y	User domain, generated when an app is created on Developer Center.
userDomainSecret	Y	User domain secret, generated when an app is created on Developer Center.
cloudServiceType	Y	Cloud service type, used to specify the service region to connect to.

QuecCloudServiceType Enumeration Definition

Field	Description
QuecCloudServiceTypeChina	China
QuecCloudServiceTypeEurope	Europe
QuecCloudServiceTypeNorthAmerica	North America

Example

class App : Application() {
    override fun onCreate() {
        super.onCreate()
        QuecIotSdk.startWithConfig(
            this,
            "X.XX.XXXX.X",
            "xxx",
            QuecCloudServiceType.QuecCloudServiceTypeChina
        )
    }
}

Additional Configurations

Initialize Private Deployment

API

Initialize private deployment so that users can configure information such as cloud service URLs and domain routing data for SDK access.

fun startWithConfig(application: Application, config: QuecPublicConfig)

Parameter

Parameter	Required	Description
config	Y	Initialization configuration template.

QuecPublicConfig Definition

Field	Type	Description
userDomain	String	User domain (required)
userDomainSecret	String	User domain secret (required)
baseUrl	String	Request URL (required)
webSocketUrl	String	WebSocket 1.0 URL (required)
webSocketV2Url	String	WebSocket 2.0 URL (required)
bootstrapUrl	String	Domain routing service URL (required)
bootstrapPath	String	Domain routing path (required)
bootstrapToken	String	Domain routing key (required)
mcc	String	MCC (optional)
tcpAddr	String	TCP address (optional)
pskAddr	String	PSK address (optional)
tlsAddr	String	TLS address (optional)
cerAddr	String	CER address (optional)
reportAddr	String	Bluetooth data report URL (optional)

Example

QuecIotSdk.startWithConfig(
    application,
    QuecPublicConfig(
        userDomain = "X.XX.XXXX.X",
        userDomainSecret = "xxx",
        baseUrl = "https://xxx.com",
        webSocketUrl = "xxx://xxx.com/xx",
        webSocketV2Url = "xxx://xxx.com:xxxx/xx",
        bootstrapUrl = "https://xxx.com",
        bootstrapPath = "/xxx",
        bootstrapToken = "xxx",
    )
)

Enable/Disable Debug Mode

API

Enable or disable debug mode. During development, you can enable debug mode to print logs for issue analysis.

fun setDebugMode(debugMode: Boolean)

Parameter

Parameter	Required	Description
debugMode	Y	Enable or disable debug mode.

Example

QuecIotSdk.setDebugMode(true)

Set Country Code

API

Configure the country code to retrieve MCC-based domain routing services.

fun setCountryCode(countryCode: String)

Parameter

Parameter	Required	Description
countryCode	Y	Country code (e.g., "86" for China)

Example

QuecIotSdk.setCountryCode("86")

Get Country List

API

Get the list of public-cloud-supported countries (SDK initialization is required first).

fun getCountryData(): List<QuecCountryModel>

Parameter

QuecCountryInfoModel Definition

Field	Type	Description
name	String	Country name.
internationalCode	String	Country code (e.g., "86")

Example

val data = QuecIotSdk.getCountryData()
