OTA Upgrade for Sub-devices

A sub-device cannot directly connect to a network and it must connect indirectly to Developer Center through a gateway, which can be used for data interaction between the sub-device and Developer Center. A gateway device reports a request for an OTA upgrade, downloads the firmware version package, reports the upgrade status and the version number on behalf of sub-devices.

This section introduces the OTA upgrade process for sub-devices.

Prerequisites

1、 A gateway device and a sub-device have been created. See Create a Product for details.

2、 A gateway device and a sub-device have been connected to Developer Center. See Device Access Solutions for details.

3、 OTA upgrade has been supported on the gateway device and sub-device.

4、 The firmware version package to be upgraded has been added. See Add a Firmware Upgrade Package for details.

5、 The firmware has been verified (optional). See Verify Firmware (Optional) for details.

6、 The upgraded plan has been created and activated. See Create an upgrade plan for details.

Upgrade Process

Silent Upgrade

1. A gateway device reports a request for an OTA upgrade or waits for Developer Center to push the upgrade plan regularly on behalf of sub-devices.

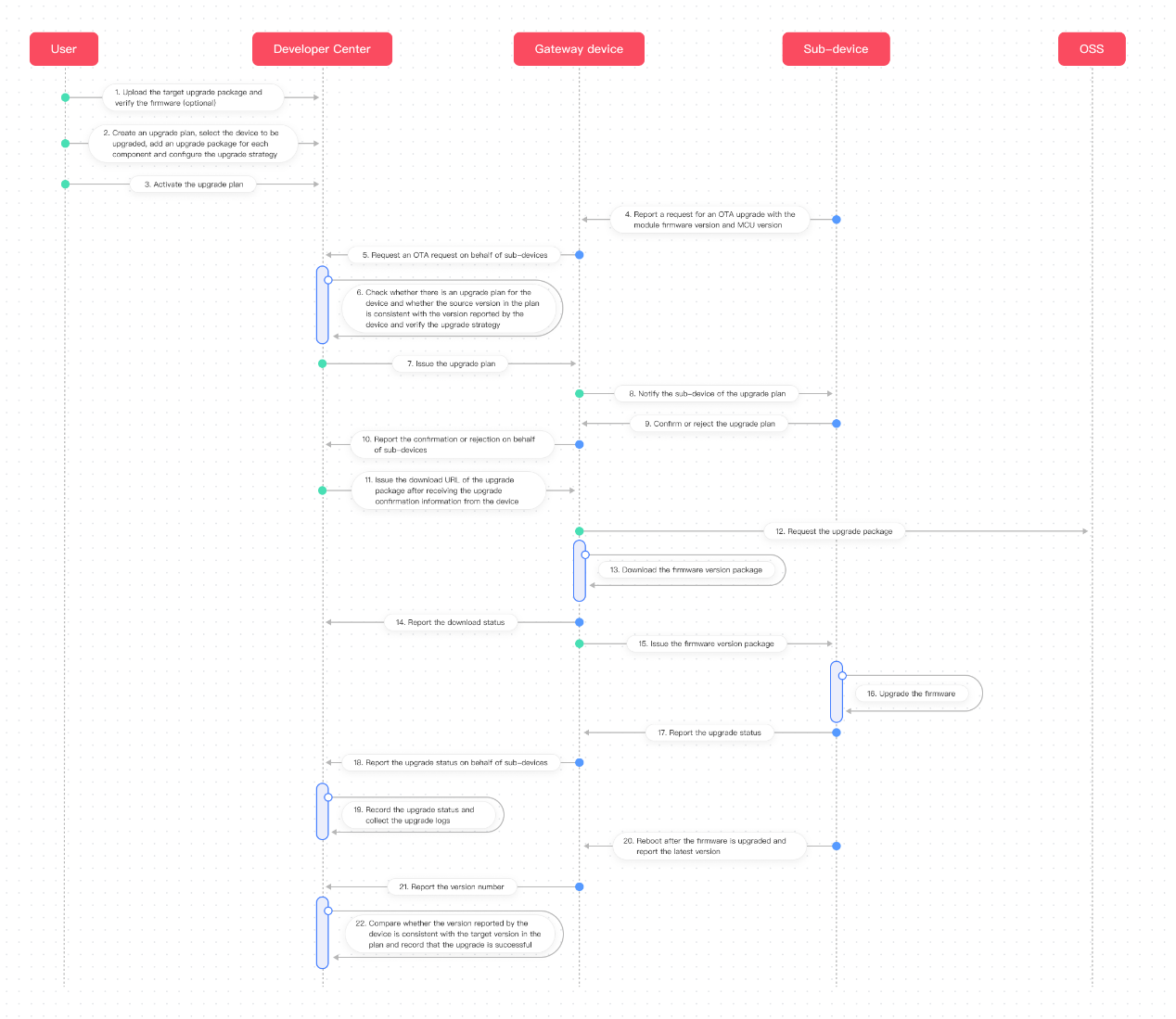

2. A gateway device reports the confirmation/rejection of the OTA upgrade, downloads the firmware version package, reports the upgrade status on behalf of sub-devices. See the flow chart below for details.

3. See OTA Upgrade Process for details.

Manual Upgrade

1. A sub-device queries the upgrade plan of the device by calling the OpenAPI.

2. You call the OpenAPI through the application to report the confirmation/rejection of the upgrade and Developer Center sends the upgrade plan to gateway devices.

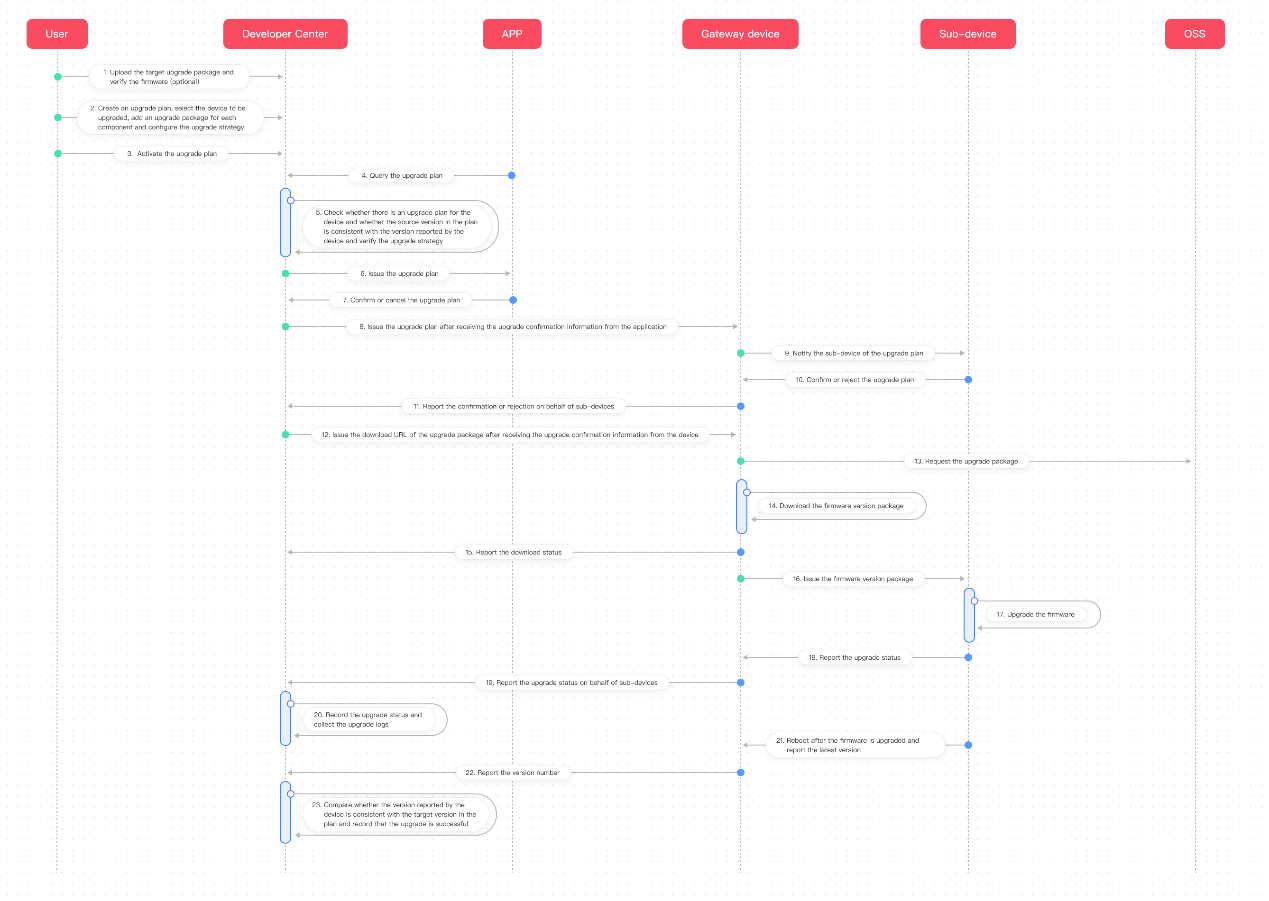

3. A gateway device reports the confirmation/rejection of the OTA upgrade, downloads the firmware version package, reports the upgrade status on behalf of sub-devices. See the flow chart below for details.

4. See OTA Upgrade Process for details.
