Write Python Script
Write Script
Let's get started on writing an example script named example.py.
Note: If you hope the script can run automatically after the module is powered on, name the example script main.py.
1. Initialize Configuration
Initialize the project configuration before connecting the module to Developer Center. Note: See Product Configuration API for details.
Power on the device, and then initialize the QuecThing component.
pyQth.init()Register event callback function for determining the connection status between the device and Developer Center.
pyeventOtaCb={ 'otaPlan':App_otaPlanCb, 'fotaResult':App_fotaResultCb } eventCb={ 'devEvent':App_devEventCb, 'recvTrans':App_cmdRecvTransCb, 'recvTsl':App_cmdRecvTslCb, 'readTsl':App_cmdReadTslCb, 'readTslServer':App_cmdRecvTslServerCb, 'ota':eventOtaCb } Qth.setEventCb(eventCb)The device authentication method supports unique-certificate-per-product authentication, so you only need to pass the PK and PS generated when you created the product to configure the device information.
pyQth.setProductInfo("pxxxxy", "OFZCxxxxxxxxUdn")Sample code
py""" Initialize QuecThing SDK. """ Qth.init() """ Register event callback functions. """ eventOtaCb={ 'otaPlan':App_otaPlanCb, 'fotaResult':App_fotaResultCb } eventCb={ 'devEvent':App_devEventCb, 'recvTrans':App_cmdRecvTransCb, 'recvTsl':App_cmdRecvTslCb, 'readTsl':App_cmdReadTslCb, 'readTslServer':App_cmdRecvTslServerCb, 'ota':eventOtaCb } Qth.setEventCb(eventCb) """ Configure product information.""" Qth.setProductInfo("pxxxxy", "OFZCxxxxxxxxUdn")
2. Access Developer Center
Connecting a device to Developer Center is made easy with the QuecPython one-click connection feature. Once connected, the device can safely and reliably communicate with Developer Center, allowing for efficient device management, monitoring and control.
- Sample codepy
""" Connect the device to Developer Center. """ Qth.start()
3. Develop Application Logic
example.py, a data template example, has implemented a general processing framework for data sending and receiving and event response. Developers can develop business data logic according to the example and project requirements.
Note: See Data Interaction API for details.
Implementation of Uplink Business Logic
The device can adopt certain strategies to detect and process data properties to accommodate specific business scenarios. For example, if the module needs to report the remaining content of essential oil to Developer Center, appropriate measures can be taken to ensure accurate reporting.
- Sample codepy
def Qth_tslSend(): while True: # Check the connection status between the device and Developer Center. if Qth.state(): ret = Qth.sendTsl(1, {1: 180.25}) # User task: reporting the remaining content of essential oil to Developer Center every 30 seconds. print('sendTsl ret:', ret) utime.sleep(30) if __name__ == '__main__': Quecthing() _thread.start_new_thread(Qth_tslSend, ())
Implementation of Downlink Business Logic
QuecThing SDK has simplified the development process for downlink data by parsing TTLV data based on the data template protocol. Developers only need to develop the downlink business logic according to different events. TSL is a template structure that uses the product data templates from Developer Center to define member variables. In the downlink data, the property pointed by the passed value has been parsed by QuecThing SDK based on the data template protocol, so developers can directly add business logic in the downlink logic processing function.
- Sample codepy
@staticmethod def App_cmdRecvTslCb(value): print('recvTsl:', value) model_keys = list(value.keys()) for cmdId in model_keys: value = value.get(cmdId) if 2 == cmdId: #Issue the frequency of regular reporting. print("Ctemporal frequency："+ str(value)) elif 3 == cmdId: #Issue on/off status. if False == value: #Close print("Turn off the aromatherapy machine") elif True == value: #Open print("Turn on the aromatherapy machine") elif 5 == cmdId: #Call a service. if 1 == value[6]: #Working Mode 1. print("Model 1") elif 2 == value[6]: #Working Mode 2. print("Model 2") elif 3 == value[6]: #Working Mode 3. print("Model 3") else : pass def App_cmdReadTslCb(ids, pkgId): print('readTsl:', ids, pkgId) for id in ids: if 1 == id: ret = Qth.ackTsl(1, {1: 180.25}, pkgId) print('ackTsl ret:', ret) elif 2 == id: ret = Qth.ackTsl(1, {2: 30}, pkgId) print('ackTsl ret:', ret) elif 3 == id: ret = Qth.ackTsl(1, {3: True}, pkgId) print('ackTsl ret:', ret) else : pass
Note: See Device Routine Demo for details.
4. Download QuecPython Script
You can directly burn example.py file into the module with QPYcom since Python codes do not require compiling.

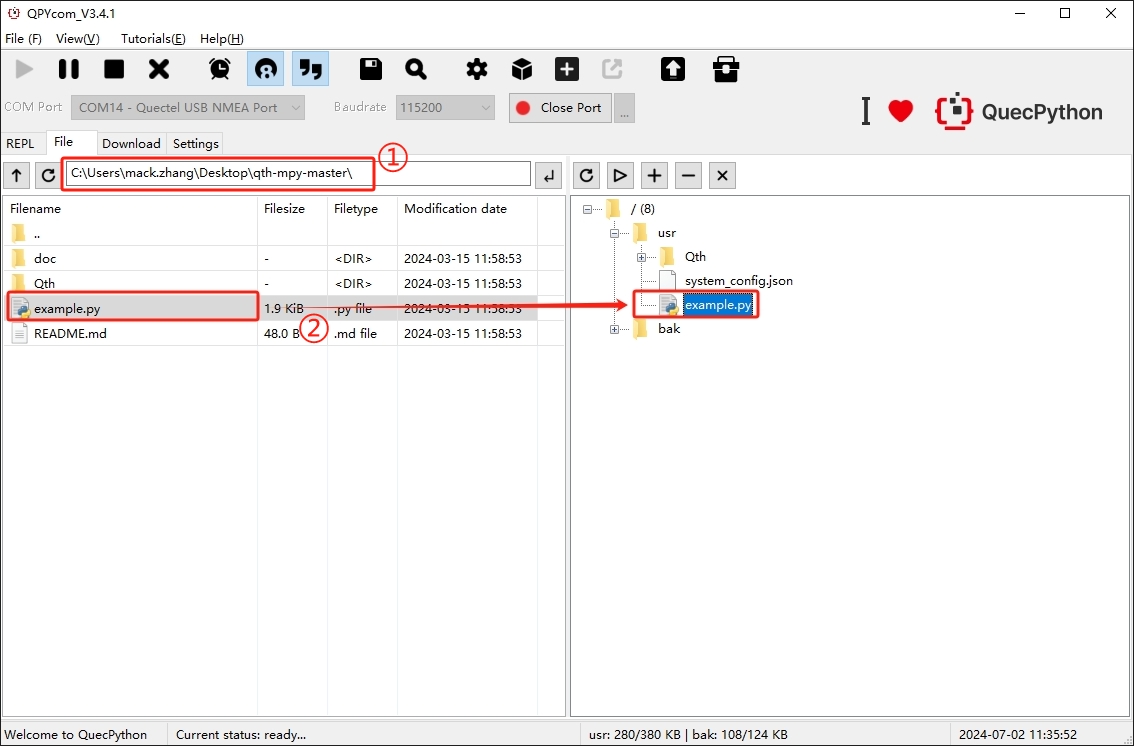

① Click "File" tag to enter the file page and select example.py file. Note: Local PC files are displayed on the left side, while files on the module are displayed on the right side of the screen.
② Drag example.py file to the root node of the usr directory on the right, and release the left mouse button to automatically download the file to the module.
Note: The file download progress is displayed in the status bar at the bottom of QPYcom window. When the download progress reaches 100%, the file is downloaded successfully
5. Run the Script

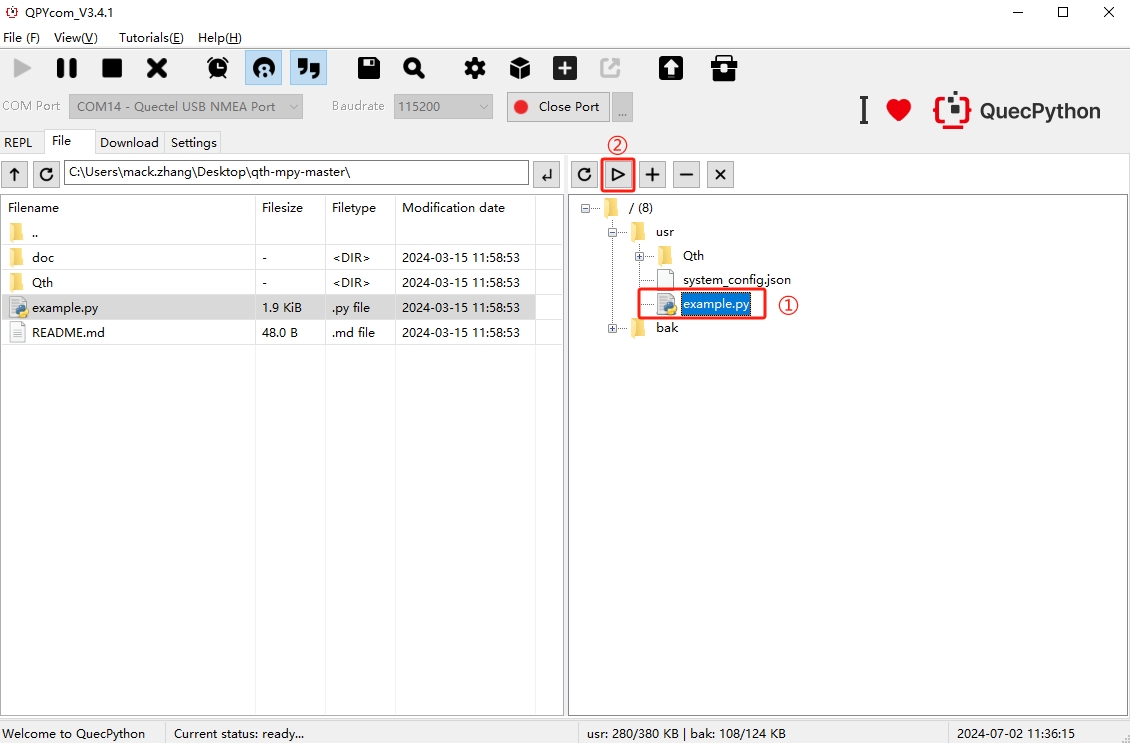

Choose example.py in the module file on the right and click the triangle above the files to automatically run the codes.
Note: Automatic or circular output scripts can not be stopped by Ctrl+C. The only way to stop the script is to re-download the firmware package.
6. Device Routine Demo
The complete sample code of example.py is shown below.
py
from usr import Qth
import _thread
import utime
class Quecthing:
def __init__(self):
Qth.init()
Qth.setProductInfo('p1xxrw','M0liTFxxxxx0Y0Mx')
eventOtaCb={
'otaPlan':self.App_otaPlanCb,
'fotaResult':self.App_fotaResultCb
}
eventCb={
'devEvent':self.App_devEventCb,
'recvTrans':self.App_cmdRecvTransCb,
'recvTsl':self.App_cmdRecvTslCb,
'readTsl':self.App_cmdReadTslCb,
'readTslServer':self.App_cmdRecvTslServerCb,
'ota':eventOtaCb
}
Qth.setEventCb(eventCb)
Qth.setAppVer('V1.0.1', self.App_sotaResultCb)
Qth.start()
@staticmethod
def App_devEventCb(event, result):
print('event:', event, result)
if(2== event and 0 == result):
Qth.otaRequest()
@staticmethod
def App_cmdRecvTransCb(value):
print('recvTrans:', value)
ret = Qth.sendTrans(1, value)
print('sendTrans ret:', ret)
@staticmethod
def App_cmdRecvTslCb(value):
print('recvTsl:', value)
model_keys = list(value.keys())
for cmdId in model_keys:
value = value.get(cmdId)
if 2 == cmdId: # Issue the frequency of regular reporting.
print("Ctemporal frequency："+ str(value))
elif 3 == cmdId: # Issue on/off status.
if False == value: # Close
print("Turn off the aromatherapy machine")
elif True == value: # Open
print("Turn on the aromatherapy machine")
elif 5 == cmdId: # Call a service.
if 1 == value[4]: # Working Mode 1.
print("Model 1")
elif 2 == value[4]: # Working Mode 2.
print("Model 2")
elif 3 == value[4]: # Working Mode 3.
print("Model 3")
else :
pass
@staticmethod
def App_cmdReadTslCb(ids, pkgId):
print('readTsl:', ids, pkgId)
for id in ids:
if 1 == id:
Qth.ackTsl(1, {1: 180.25}, pkgId)
elif 2 == id:
Qth.ackTsl(1, {2: 30}, pkgId)
elif 3 == id:
Qth.ackTsl(1, {3: True}, pkgId)
else :
pass
@staticmethod
def App_cmdRecvTslServerCb(serverId, value, pkgId):
print('recvTslServer:', serverId, value, pkgId)
Qth.ackTslServer(1, serverId, value, pkgId)
@staticmethod
def App_otaPlanCb(plans):
print('otaPlan:', plans)
Qth.otaAction(1)
@staticmethod
def App_fotaResultCb(comp_no, result):
print('fotaResult:', comp_no, result)
def Qth_tslSend():
while True:
# Check the connection status between the device and Developer Center.
if Qth.state():
Qth.sendTsl(1, {1: 180.25}) # User task: reporting the remaining content of essential oil to Developer Center every 30 seconds.
utime.sleep(30)
print('Qth_tslSend')
if __name__ == '__main__':
Quecthing()
_thread.start_new_thread(Qth_tslSend, ())
