Wi-Fi Device Firmware Download

1) Download Burning Tool

Enter Download Center, select the specified module model and enter the corresponding download page, find the burning tool and download it.

2) Connect PC to Device

Connect your PC to the M_UART_USB serial port of the module with a MicroUSB cable.

3) Download Firmware

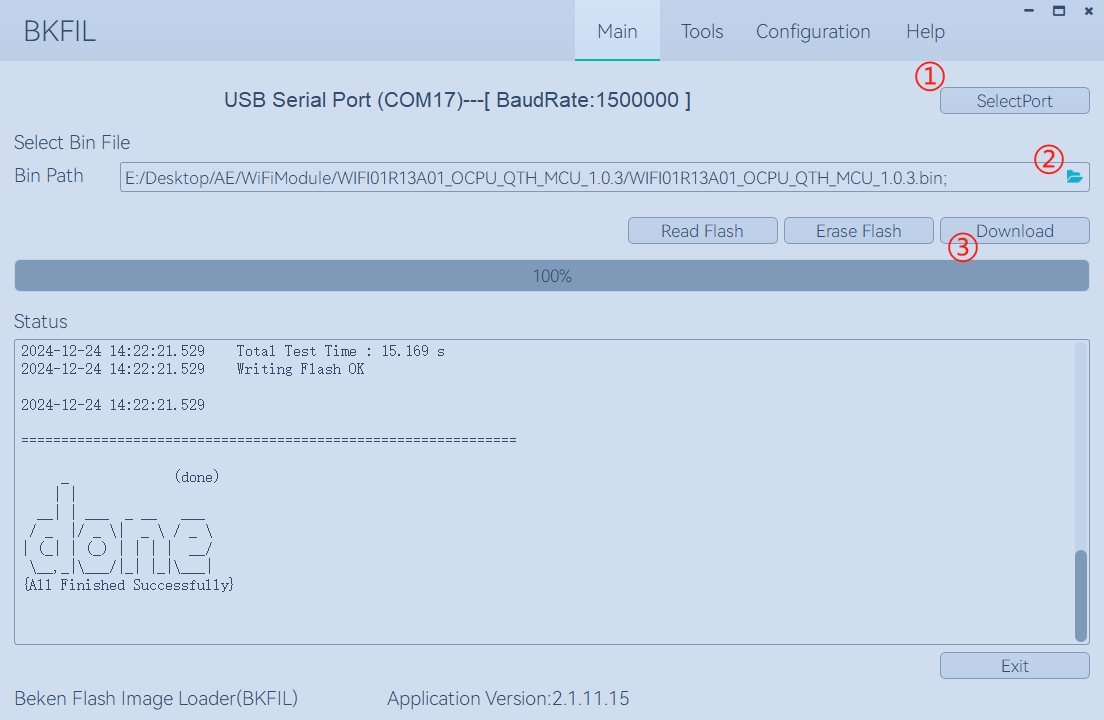

Open Beken Writer and select the firmware to be downloaded. See the figure below for the download procedure.

① Select the "Port COM" used to connect the module.
② Click "Browse..." to select the target .bin file.
③ Click "Program" and reset the module by Reset PIN

Note: Please ensure the port is not occupied during the firmware download.
