Service Calls

Service calls section displays the data defined as services in TSL model for the product.

Prerequisites

● A product has been created in TSL data format and a feature has been defined as a service in the TSL model.
● A device has been developed and the service call data has been sent.

Steps

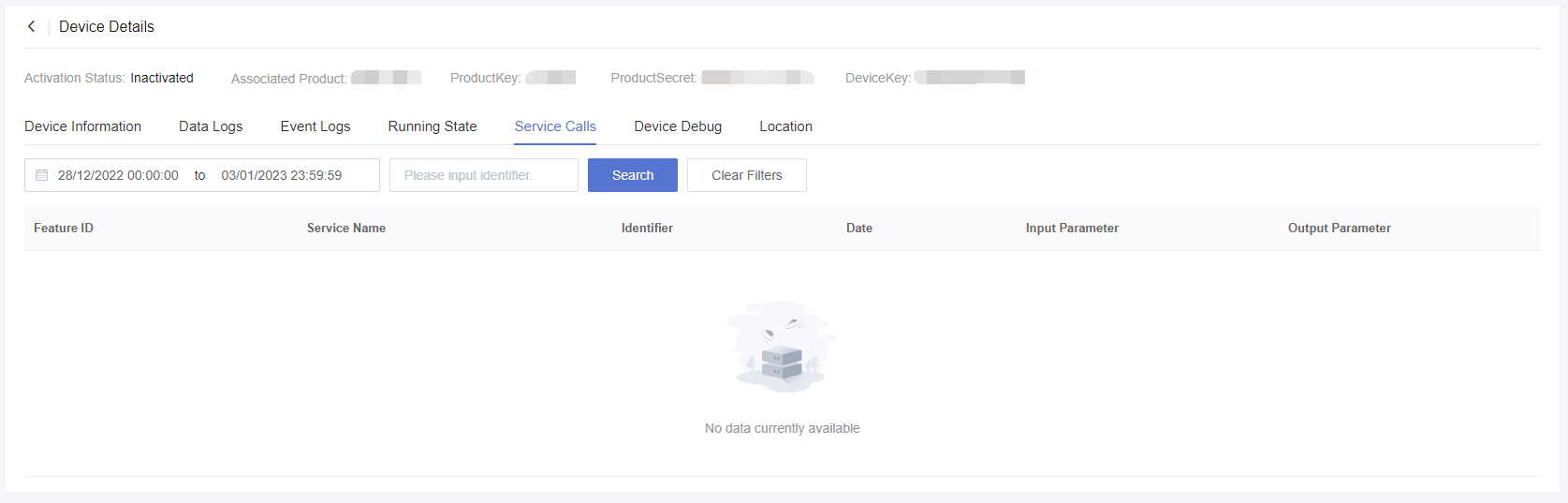

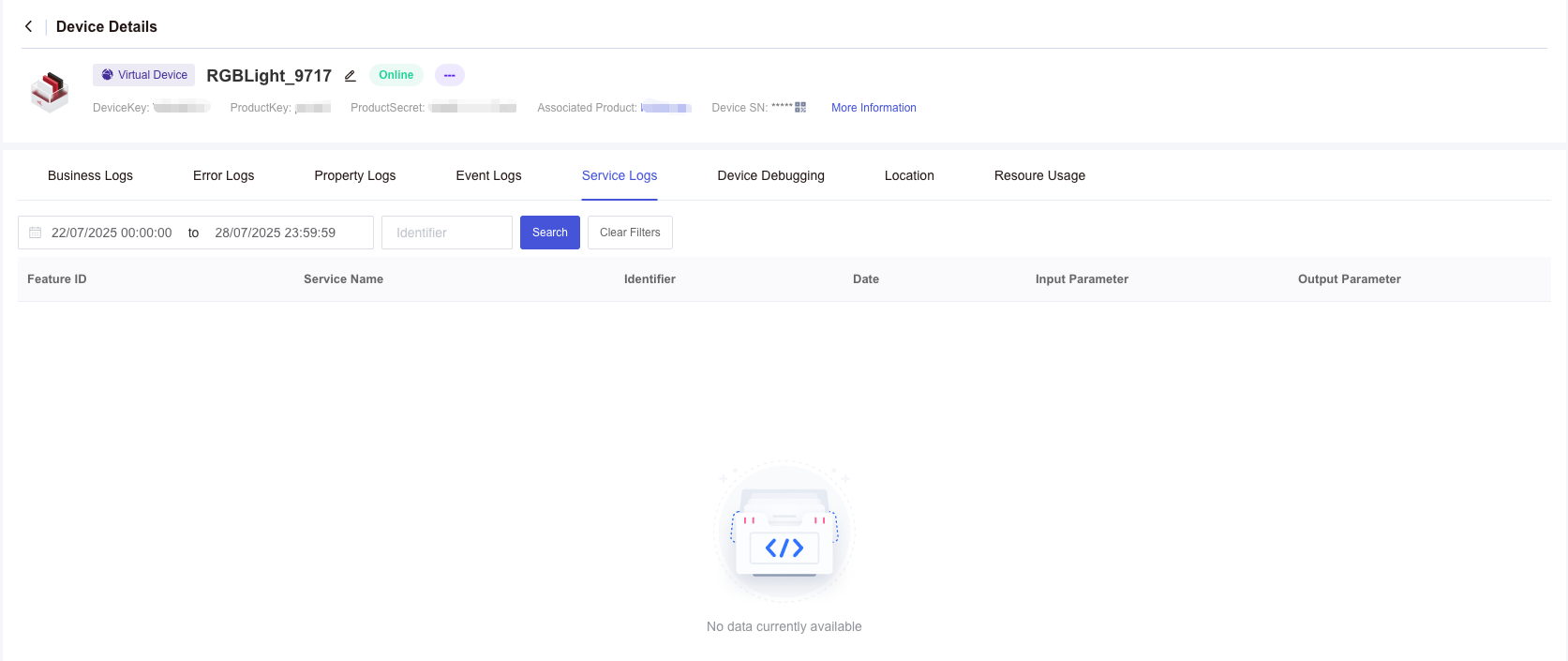

Log in to Developer Center, click "Device Management"→ "Device Maintenance” in the left-hand navigation bar to display the list of devices. Find the desired device from the list and click "View" in the Action column to enter "Device Information" page, and then click "Service Calls" tab.

Parameters

Parameter	Description
Feature ID	Unique identifier of a product feature
Service Name	Name of the service defined in the TSL model
Identifier	Identifier of the service defined in TSL model, corresponding to the service name
Sending Time	The time when a service was called, that is, input parameter creation time
Response Time	The response time of the device after the service was called, that is, the creation time of the output parameter
Input Parameter	Input the parameter when calling a service
Output Parameter	The output parameter in the device response
