Device Running State

This section outlines device running state, which is available only for devices under the products in TSL data format.

Prerequisites

● A product has been created in TSL data format.
● A device has been developed and TSL data has been sent.

Steps

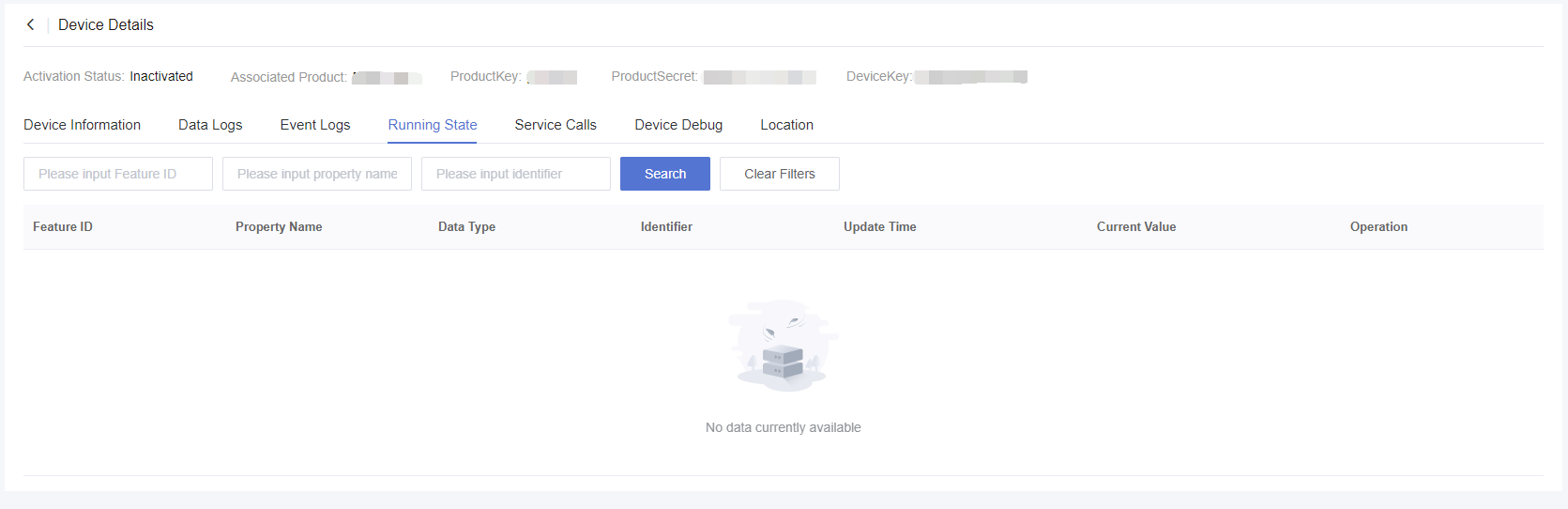

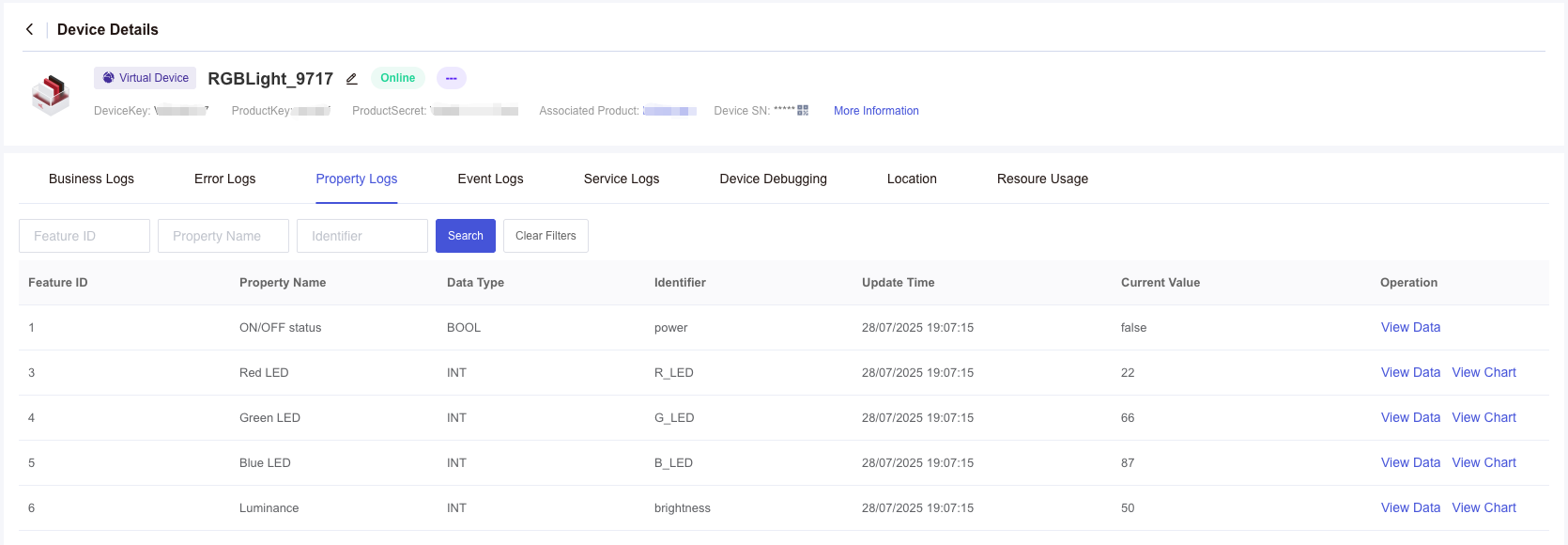

Log in to Developer Center, click "Device Management"→ "Device Maintenance” in the left-hand navigation bar to display the device list. Find the device you want to check, click "View" in the Action column to enter "Device Information" page, and then click "Running State" tab to view the properties in the TSL model.

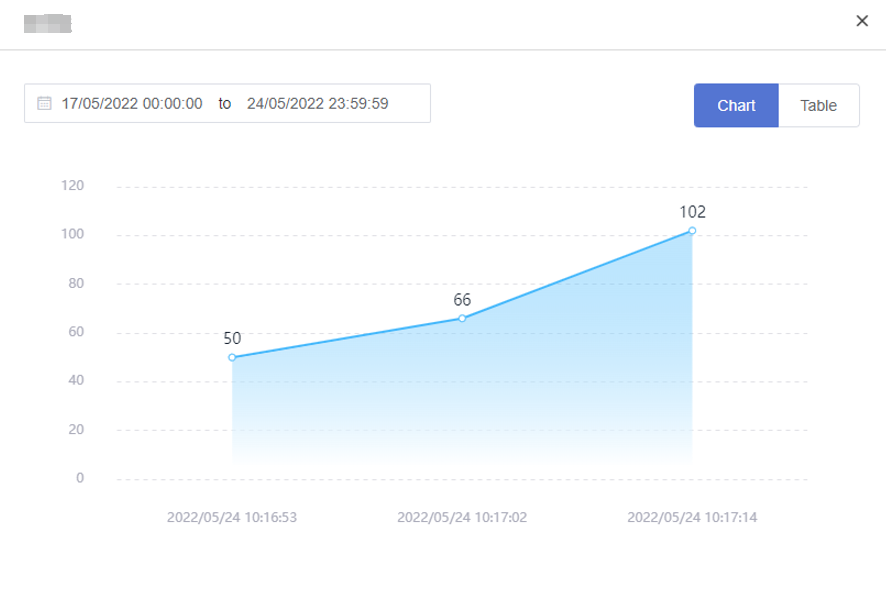

Find the property you want to view and click "View Data" button in the Action column to get the historical data for the property.

Parameters

Parameter	Description
Feature ID	Unique identifier of a product feature
Property Name	Name of the property defined in the TSL model
Data Type	Data type of the feature. See TSL Overview.
Identifier	Identifier of the feature defined in TSL model
Update Date	The most recent date when the data was reported and stored
Current Value	The most recently reported feature value
