Device Communication Debugging ​

This section introduces how to take AT commands for data interaction using a RGB LED light as an example.

1. Data Uplink ​

After the device connects to Developer Center, MCU can send TSL model data to Developer Center through AT+QIOTMODELTD. After executing AT+QIOTMODELTD and receiving the > prompt from the device, send properly formatted TSL model data. The JSON format should be: {"<ID1>":<value1>,"<ID2>":<value2>,…,"<IDn>",<valuen>} where <ID> is the TSL model ID and <value> is the TSL model value.

Example of sending the following TSL model data

⚫ ID: 1. Type: BOOL. Feature Name: Switch. Content: True.

⚫ ID: 2. Type: INT. Feature Name: Color R. Content: 100.

⚫ ID: 3. Type: INT. Feature Name: Color G. Content: 150.

⚫ ID: 4. Type: INT. Feature Name: Color B. Content: 200.

⚫ ID: 5. Type: INT. Feature Name: Brightness. Content: 100.

⚫ ID: 6. Type: INT. Feature Name: Delay Shutdown Time. Content: 60.

Plain
[TX]AT+QIOTMODELTD=1,19

[RX]>
[TX]{"1":true,"2":100,"3":150,"4":200,"5":100,"6":60}
[RX]OK
[RX]+QIOTEVT: 4,10210

Note:

If the device fails to report the TSL model, you can troubleshoot with the following methods:

  1. Execute AT+QIOTSTATE? to query Developer Center connection status. If the response value equals 8, the connection is normal.
  2. For detailed event codes, refer to the link: Developer Center > Documentation > Device Development > Callback Event Codes.

2. Data Downlink ​

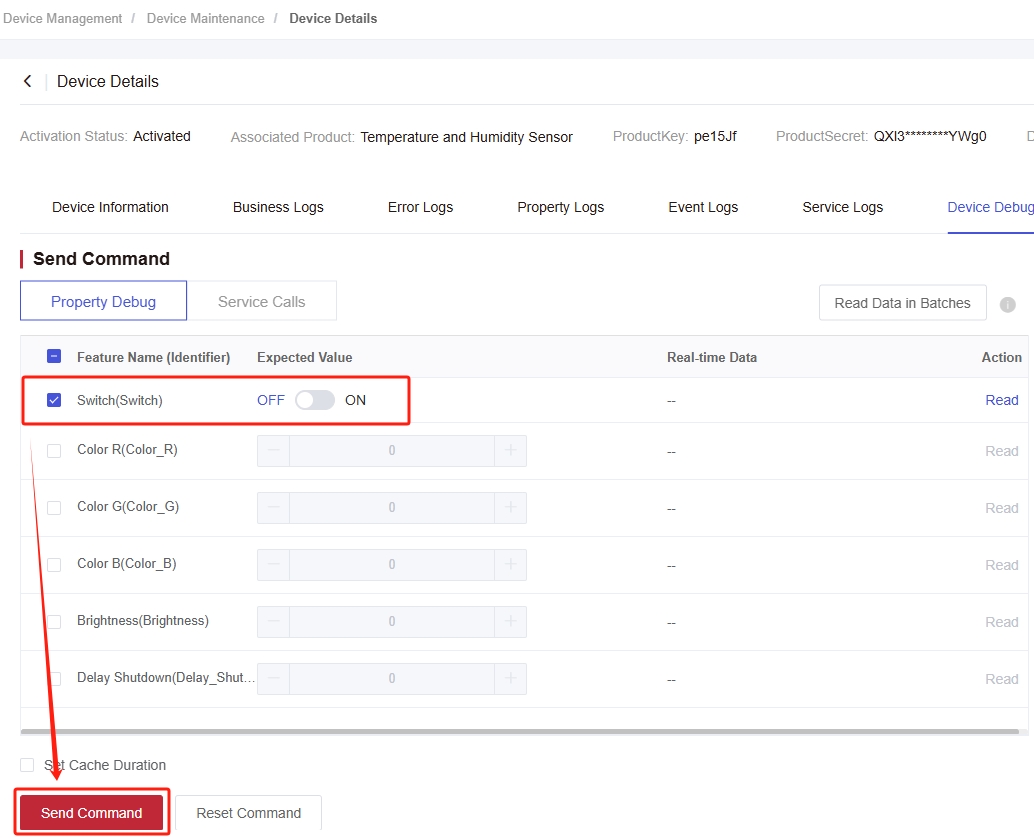

Navigate to "Device Maintenance" > "Device Debugging" to simulate the scenario of remotely issuing control commands. In "Device Debugging", select the TSL model data to be issued, and finally click "Send Command".


Example of sending the following TSL model data

⚫ ID: 1. Type: Bool. Feature Name: Switch. Content: false.

In non-cache mode, when the UE receives data from Developer Center, it directly prints data to the MCU. For example, after Developer Center sends a service command, the serial tool displays the results as shown below:

Plain
[RX]+QIOTEVT: 5,10200,11
[RX]{"1":false}

Interaction Data Parsing (For event details, please refer to: Interaction Event)

  • +QIOTEVT: 5,10200,11: Event notification sent to the MCU after the UE receives TSL model data.
    • 5 : Event type. It indicates downlink data reception.
    • 10210: Event Code. It indicates TSL model data reception.
    • 11: Length of the received data.
  • {"1":false} : JSON-formatted TSL model service data received from Developer Center.
